2016 INDIAN SCOUT
Technical Specifications
| CHASSIS | |
|---|---|
| Dry Weight | 516 lbs (235 kg) |
| Wet Weight | 560 lbs (255 kg) |
| Gross Vehicle Weight Rating | 988 lbs (449 kg) |
| Gross Axle Weight Rating, Front | 337 lbs (153 kg) |
| Gross Axle Weight Rating, Rear | 651 lbs (296 kg) |
| Maximum Load | 428 lbs (194 kg) |
| Overall Length | 91.0 in (2311 mm) |
| Overall Width | 34.6 in (880 mm) |
| Overall Height | 47.5 in (1207 mm) |
| Seat Height | 25.3 in (643 mm) |
| Ground Clearance | 5.3 in (135 mm) |
| Wheelbase | 61.5 in (1562 mm) |
| Rake / Trail | 29° / 4.7 in (119.9 mm) |
| ENGINE | |
| Engine Configuration | Liquid Cooled V-Twin 60° |
| Engine Wet Weight | 205 lbs (93 kg) |
| Engine Displacement | 69 cid (1133 cc); Sixty - 61 cid (999 cc) |
| Engine Cooling | Liquid |
| Compression Ratio | 10.7:1, (Sixty) - 11.0:1 |
| Compression Pressure | 210 - 230 psi (1448 - 1586 kPa) |
| Valve Train | DOHC, 4 Valves Per Cylinder, Graded Buckets |
| Bore x Stroke | 3.898 in x 2.898 in (99 mm x 73.6 mm); (Sixty) - 3.661 in x 2.898 in (93 mm x 73.6 mm) |
| Idle Speed | 1100 RPM ± 50 RPM (fully warm) |
| Lubrication System | Semi-Dry Sump |
| Spark Plug Type / Gap | NGK MR7F / 0.030 in (0.8 mm) |
| FUEL SYSTEM | |
| Fuel System | Electronic Fuel Injection (ME17) |
| Fuel Delivery | Electronic Fuel Pump (in tank) |
| Fuel Pressure | 58 psi (400 kPa) |
| Throttle Body Bore | 2.362 in (60 mm) |
| Fuel Capacity | 3.5 gal (13.2 L) |
| Fuel Reserve Capacity | 0.5 gal (1.9 L) |
| Recommended Fuel | 91 Octane |
| TRANSMISSION | |
| Transmission | 6 Speed / Sliding Mesh; Sixty - 5 Speed / Sliding Mesh |
| Clutch | Wet, Multi-Plate, Coil Spring |
| Primary Drive | Wet, Gear Drive |
| Primary Reduction Ratio | 1.652:1 |
| Final Drive / Ratio | Belt / 2.357:1 |
| Belt Type / Width | Carbon Fiber Reinforced Belt 141 Tooth, 22 mm |
| Gear Shift Pattern | 1 Down, 5 Up (Sixty) - 1 Down, 4 Up |

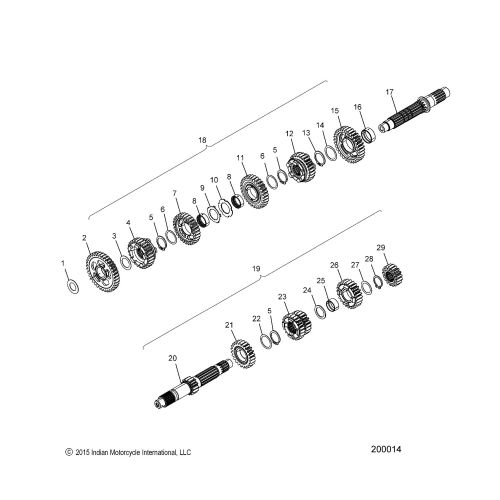

| Transmission Gear Ratios: | |
| 1st | 2.769:1 |
| 2nd | 1.882:1 |
| 3rd | 1.500:1 |
| 4th | 1.273:1 |
| 5th | 1.125:1; Sixty - 1.036:1 |
| 6th | 1.036:1; Sixty - N/A |
| SUSPENSION | |

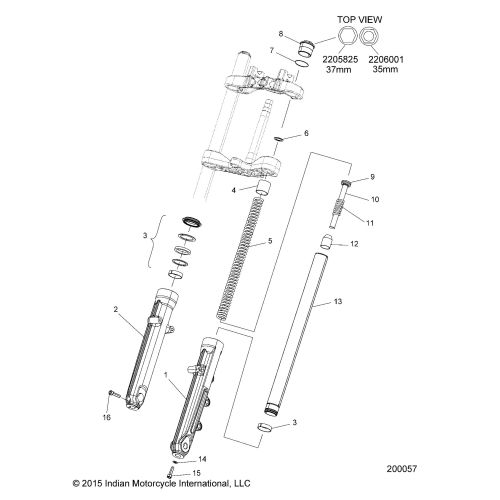

| Front Suspension | Conventional Telescopic Fork |
| Front Travel | 4.7 in (120 mm) |
| Front Tube Diameter | 41 mm |
| Rear Shock | Monotube Dual Shocks |
| Rear Swingarm | Steel Weldment |
| Rear Travel | 3.0 in (76 mm) |
Service Information
| ENGINE | |
|---|---|
| Engine Oil Type | SAE Synthetic 15W60 |
| Engine Oil Capacity | 4.5 qts (4.3 L) Dry engine |
| Spark Plugs | NGK MR7F |
| Coolant / Antifreeze Capacity | 2.77 Qts (2.63 Litres) |
| ELECTRICAL | |
| Battery | YTX14AH-BS (12v / 12AH / 210 CCA) |
| Headlight Bulb | H4 12v 60/55W |
| Sidelight Bulb | Capless 12v 5W |
| Indicator Bulb | 12v Orange RY10W |
| SUSPENSION | |
| Front Fork Oil | Indian Motorcycle Fork Oil |
| Font Fork Oil Capacity | 11.3 oz (335 cc) per leg (Part Number: 2880015) |
| TYRES | |
| Front Tyre | 130/90-16 72H |
| Front Tyre Pressure | 36 PSI |
| Rear Tyre | 150/80-16 71H |
| Front Tyre Pressure | 40 PSI |
Torque Specifications
| Axle (front fork) | 52 ft-lbs (70 Nm) |
| Axle Nut (rear) | 65 ft-lbs (88 Nm) |
| Axle Pinch Fasteners | 18 ft-lbs (24 Nm) |
| Banjo Fastener (Front Caliper, M/C) | 18 ft-lbs (24 Nm) |
| Banjo Fastener (Rear Caliper, M/C) | 18 ft-lbs (24 Nm) |
| Brake Disc Fasteners | 19 ft-lbs (26 Nm) |
| Caliper Mounting Fasteners (front) | 35 ft-lbs (47 Nm) |
| Caliper Mounting Fasteners (rear) | 30 ft-lbs (41 Nm) |
| Caliper Slide Fastener (rear) | 20 ft-lbs (27 Nm) |
| Caliper Slide Pin (front, upper and lower) | 18 ft-lbs (24 Nm) |
| Drive Sprocket Nut | 133 ft-lbs (180 Nm) |
| Engine Oil Drain Plugs (2) | 15 ft-lbs (20 Nm) |
| Exhaust Clamps | 40 ft-lbs (54 Nm) |
| Exhaust Mount Nut | 50 ft-lbs (68 Nm) |
| Exhaust Studs | 15 ft-lbs (20 Nm) |
| Fender Fasteners (front) | 18 ft-lbs (24 Nm) |
| Fender Fasteners (rear) | 18 ft-lbs (24 Nm) |
| Fork Cap | 16 ft-lbs (22 Nm) |
| Fork Cartridge Fastener | 17 ft-lbs (23 Nm) |
| Fork Triple Clamp Fasteners (Lower) | 18 ft-lbs (24 Nm) |
| Fork Triple Clamp Fasteners (Upper) | 18 ft-lbs (24 Nm) |
| Footpeg Fasteners (driver) | 35 ft-lbs (47 Nm) |
| Footpeg Fasteners (passenger) | 19 ft-lbs (26 Nm) |
| Footpeg Shoulder Fasteners | 50 ft-lbs (68 Nm) |
| Fuel Cap Fasteners | 43 in-lbs (5 Nm) |
| Handle Bar Riser Fasteners | 22 ft-lbs (30 Nm) |
| Oil Filter | 115 in-lbs (13 Nm) or approximately 3/4 to 1 full turn after seal contacts the filter mount sealing surface. |
| Oil Pressure Switch | 88 in-lbs (10 Nm) |
| Oxygen Sensors | 14 ft-lbs (19 Nm) |
| Pad Retaining Pin (front and rear) | 80 in-lbs (9 Nm) |
| Spark Plug | 10 ft-lbs (14 Nm) |
| Steering Head Nut | 29 ft-lbs (40 Nm) |
| Steering Stem Nut (top) | 72 ft-lbs (97 Nm) |
| Swingarm Nut (LH) | 85 ft-lbs (115 Nm) |
